Ashu Motors EF29 E-Frame motors power window air conditioner indoor and outdoor fans. With 28 models, 3-speed operation, HP ratings from 1/8 to 1/6 and matched capacitors, they suit every leading window AC brand.
Window AC Motors
Window AC E-Frame Motors (EF29)
Product Overview
Window AC E-Frame Motors (EF29)
E-Frame window AC fan motors (EF29 series) — 28 models for Voltas, Hitachi, Carrier, Blue Star, Onida and more, with 3-speed operation.
At a Glance
Model
Suitable For
AMI B40 EF29
Voltas 1 Ton
AMI B47 EF29
Hitachi
Full EF29 E-Frame motor range for window air conditioners — choose by brand and rating.
Engineering Highlights
Built for Performance
Key Highlights
What Makes the Window AC E-Frame Motors (EF29) Exceptional
- 28 models for all window AC brands
- 3-speed operation
- HP ratings 1/8 to 1/6
- CW/CCW rotation options
- Copper winding, long service life
Technical Specifications
Engineer-Grade Data Sheet
| Model | Suitable For | RPM | Watts | HP | Rotation | Capacitor | Speed | Shaft Extension | Flat Size |
|---|---|---|---|---|---|---|---|---|---|
| AMI B40 EF29 | Voltas 1 Ton | 930 | 90 | 1/8 | CCW | 6mfd. | 3 | 62.0mm x 51.0mm | 21mm x 35mm (Non Thread) |

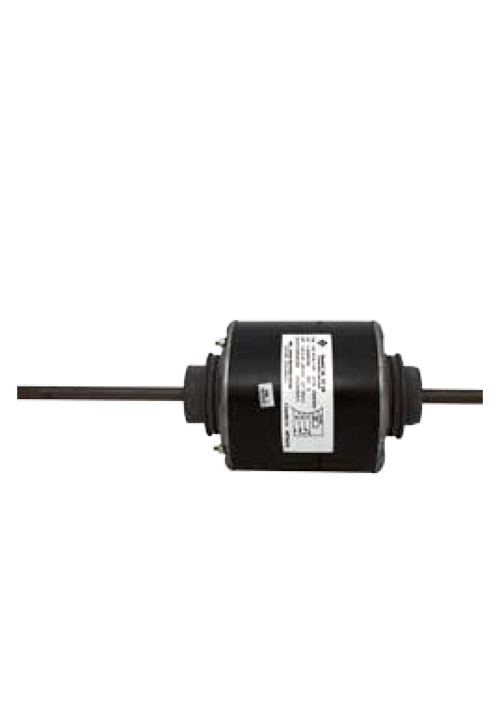

| AMI B47 EF29 | Hitachi | 900 | 30 | 1/7 | CCW | 6mfd. | 3 | 143.5mm x 115.5mm | 40mm x 65mm (Non Thread) |

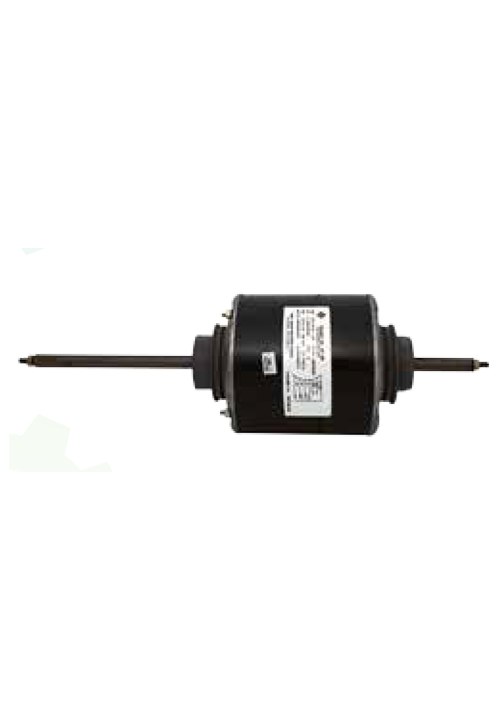

| AMI B48 EF29 | Hitachi | 1050 | 100 | 1/6 | CW | 4mfd. | 3 | 185.5mm x 94mm | 37.5mm x 31mm (With Thread) |

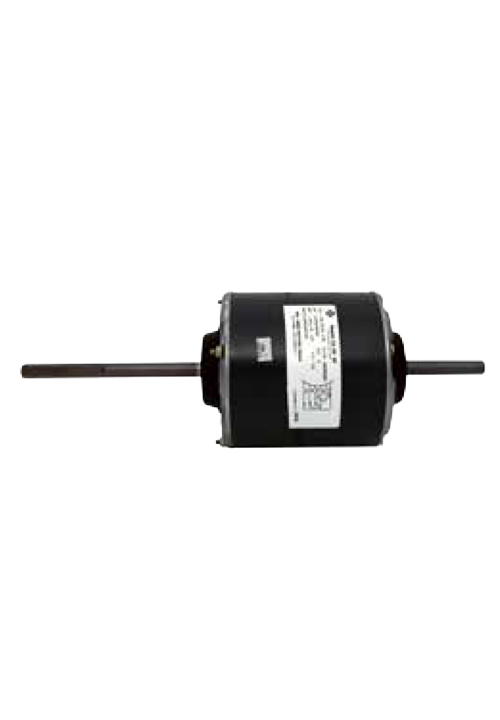

| AMI B49 EF29 | OG , Onida | 930 | 93 | 1/8 | CCW | 6mfd. | 3 | 143mm x 73mm | 63mm x 52mm (Non Thread) |

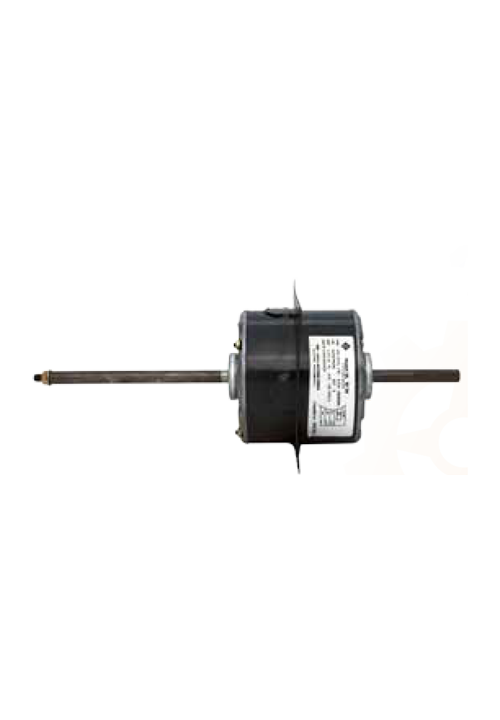

| AMI B50 EF29 | Voltas | 930 | 93 | 1/8 | CCW | 6mfd. | 3 | 177.3mm x 86mm | 42mm with Thread x 35mm Non Thread |
| AMI B53 EF29 | OG | 930 | 93 | 1/8 | CCW | 6mfd. | 3 | 123mm x 79mm | 62mm x 52mm (Non Thread) |
| AMI B54 EF29 | Nepoleon | 930 | 93 | 1/8 | CCW | 6mfd. | 3 | 123mm x 65mm | 36mm x 36mm (With Thread) |
| AMI B57 EF29 | Speed | 930 | 93 | 1/8 | CCW | 6mfd. | 3 | 93mm x 79.5mm | 47mm x 47mm (With Thread) |
| AMI B58 EF29 | Voltas (old model) | 930 | 93 | 1/8 | CCW | 6mfd | 3 | 145.5mm x 82.5mm | 32mm With Thread x 40mm Non Thread |
| AMI B59 EF29 | L.G | 930 | 93 | 1/8 | CCW | 6mfd | 3 | 151.0mm x 89.0mm | 55mm x 40mm (Non Thread) |
| AMI B60 EF29 | L.G 1Ton | 930 | 90 | 1/8 | CCW | 6mfd | 3 | 62.0mm x 53.5mm | 21mm x 35mm (Non Thread) |
| AMI B73 EF29 | Voltas UE 1168M | 910 | 95 | 1/8 | CCW | 6mfd | 3 | 178.0mm x 57.5mm | 78mm with Thread x 51mm Non Thread |
| AMI B62 EF29 | L.G (Long shaft) | 930 | 118 | 1/6 | CCW | 6mfd | 3 | 163.5mm x 154.0mm | 36.5mm x 38.5mm (Non Thread) |
| AMI B63 EF29 | Voltas | 930 | 30 | 1/8 | CCW | 6mfd | 3 | 169.4mm x 80.5mm | 42mm With Thread x 35mm Non Thread |
| AMI B64 EF29 | Videocon | 1050 | 124 | 1/6 | CCW | 4mfd | 3 | 164mm x 82.3mm | 43.5mm With Thread x 21mm Non Thread |
| AMI B65 EF29 | Videocon | 1050 | 124 | 1/6 | CCW | 4mfd | 3 | 85.5mm x 78.5mm | 43.5mm With Thread x 27mm Non Thread |
| AMI B66 EF29 | Blue star | 930 | 93 | 1/8 | CCW | 6mfd | 3 | 96.0mm x 75.0mm | 55.5mm x 55.5mm (Non Thread) |
| AMI B67 EF29 | Blue star | 930 | 93 | 1/8 | CCW | 6mfd | 3 | 90.5mm x 69.0mm | 55.5mm x 55.5mm (Non Thread) |
| AMI B68 EF29 | Voltas UE 1168 | 910 | 95 | 1/8 | CW | 6mfd | 3 | 151.0mm x 82.5mm | 63mm x 51mm (Non Thread) |
| AMI B69 EF29 | Carrier | 900 | 124 | 1/6 | CCW | 6Mfd | 3 | 76mm x 106.5mm | 46mm x 46mm (Non Thread) |
| AMI B02 EF29 | Carrier Split | 880 | 68 | — | CW | 4mfd | — | 60.0mm | 34mm with Thread |
| AMI B03 EF29 | Voltas | 1050 | 93 | — | CCW | 4mfd | — | 85.0mm | 53.5mm with Thread |
| AMI B04 EF29 | Voltas, Azure | 1050 | 93 | — | CCW | 4mfd | — | 85mm | 53.5mm with Thread |
| AMI B05 EF29 | Blue star | 930 | 73 | — | CCW | 4mfd | — | 50.7mm | 45mm Non Thread |
| AMI B06 EF29 | Blue star | 1050 | 93 | — | CCW | 4mfd | — | 66.0mm with Thread | 39mm with Thread |
| AMI B09 EF29 | Videocon | 900 | 76 | — | CCW | 4mfd | — | 79.5mm with Thread | 36mm with Thread |
| AMI B12 EF29 | Blue star | 900 | 75 | — | CCW | 4mfd | — | 63.0mm with Thread | 42mm with Thread |
| AMI B24 EF29 | — | 920/1 | 65 | — | CCW | 4mfd | — | 75.5mm | 45mm Non Thread |
* Subject to revision without notice. Contact our engineering team for the latest factory specifications.
Applications
Where the Window AC E-Frame Motors (EF29) Is Used
Versatile across industrial, construction and surface preparation sectors.
Window air conditioner fans
Indoor & outdoor coil units
OEM & replacement supply
Why Buy From Ashu Motors
Trusted Motors Backed by 28+ Years of Manufacturing
ISO 9001:2015 Certified
Quality-managed manufacturing with premium copper winding for stable, long-lasting performance.
In-House Manufacturing
Our Mayapuri facility builds motors & brackets to exact spec — custom RPM, rotation & sizing.
Brand Compatibility
Direct-fit motors for LG, Voltas, Videocon, Lloyd, Hitachi, Carrier, Blue Star & Onida.
Pan-India Supply
Reliable bulk & retail dispatch across India for dealers, OEMs and service centers.
