AC Outdoor Motors

ODU Fan Motors — G Series (F95)

ODU Fan Motors — G Series (F95)
Product Overview

ODU Fan Motors — G Series (F95)

High-efficiency outdoor unit (ODU) fan motors in the G-Series F95 frame — 23 models compatible with LG, Voltas, Videocon, Lloyd, Hitachi and more.
Chat on WhatsApp
At a Glance
Model Suitable For
AMI G01 F95 LG 1.5 Ton
AMI G02 F95 Videocon

Complete range of G-Series F95 ODU fan motors — select by brand compatibility and specification.

The Ashu Motors G-Series (F95 frame) outdoor unit fan motors are engineered for split and window AC condenser units. Available in 23 models covering all major brands, with CW/ACW rotation options, copper winding and matched capacitors for reliable, quiet operation.

Engineering Highlights

Built for Performance

Feature
Feature
Feature
Feature
Key Highlights

What Makes the ODU Fan Motors — G Series (F95) Exceptional

  • 23 models for all major AC brands
  • Copper winding for durability
  • CW & ACW rotation options
  • Matched capacitor recommendations
  • Precision shaft & flat sizing
Technical Specifications

Engineer-Grade Data Sheet

ModelSuitable ForRPMWattsRotationCapacitorShaft ExtensionFlat Size
AMI G01 F95LG 1.5 Ton87039CW2mfd.69.7mm Incl. Thread23mm Incl. Thread

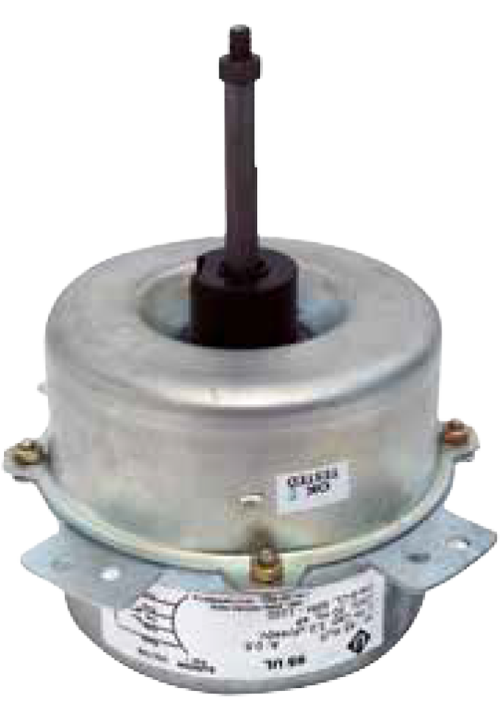

AMI G02 F95Videocon110055CW3mfd.67.0mm Incl. Thread34.5mm Incl. Thread

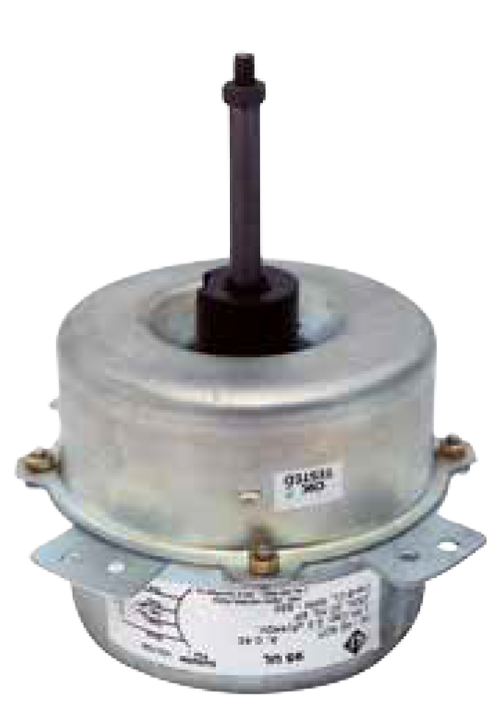

AMI G03 F95Voltas92045ACW2.5mfd.68.0mm Incl. Thread32mm Incl. Thread

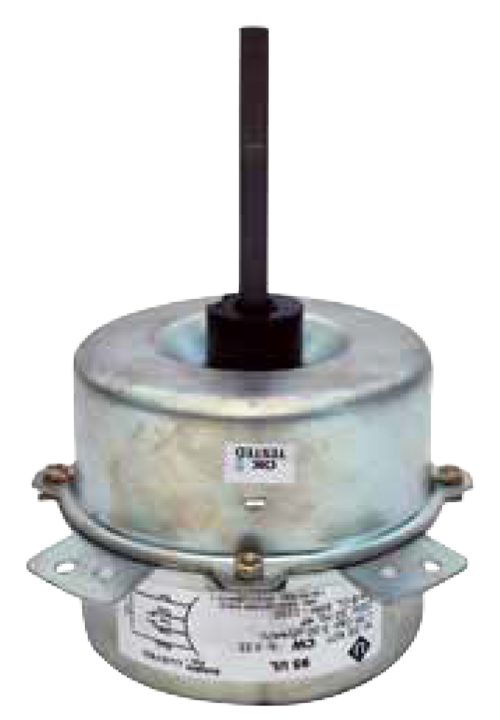

AMI G04 F95Lloyed110055CW3mfd.90.0mm Non Thread40mm Non Thread

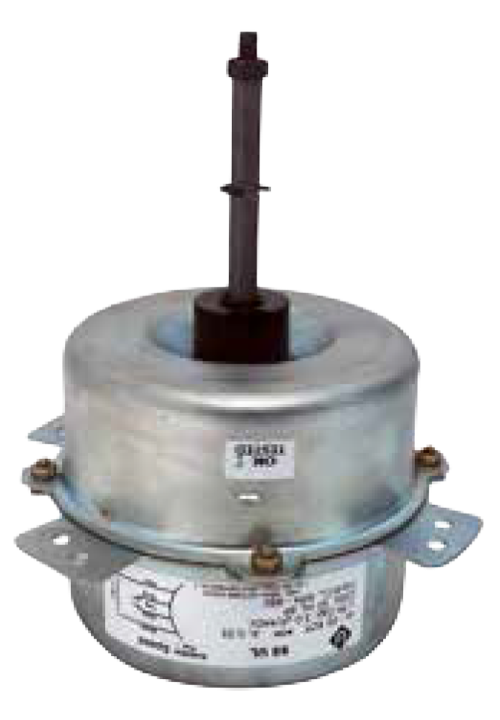

AMI G05 F95Speed & more90055ACW3mfd.68.0mm Incl. Thread41.7mm Incl. Thread
AMI G07 F95Speed & more120065CW3mfd.95.0mm Incl. Thread55.5mm Incl. Thread
AMI G08 F95—85065ACW2.5mfd.96.0mm Incl. Thread55.5mm Incl. Thread
AMI G09 F95Voltas & more87038CW2.5mfd.95.0mm Incl. Thread34mm Incl. Thread
AMI G10 F95Samsung & more105045CW2.5mfd.76.0mm Incl Thread41.5mm Incl Thread
AMI G11 F95Lloyd & more110055CW3mfd.57.5mm Non Thread40mm Non Thread
AMI G12 F95Voltas, Whirl-88055CW3mfd.85.0mm Incl. Thread37.5mm Incl. Thread
AMI G13 F95—92045CW2.5mfd.67.0mm Incl. Thread34.5mm Incl. Thread
AMI G14 F95—110065CW3mfd.67.0mm Incl. Thread34.5mm Incl. Thread
AMI G15 F95Voltas & more110065ACW3mfd.67.0mm Incl. Thread32mm Incl. Thread
AMI G18 F95Haier PICL86030ACW3mfd.67.0mm Incl. Thread47mm Incl. Thread
AMI G29 F95Hitachi90054CW3mfd.53.0mm Incl. Thread41.5mm Incl. Thread
AMI G34 F95Panasonic - UC102060CW3mfd.69.0mm Incl. Thread31.5mm Incl. Thread
AMI G36 F95GAL 28 A90028ACW2mfd.63.0mm Incl. Thread31.0mm Incl. Thread
AMI G37 F95GAL 30 A90030CW2mfd.54.0mm Incl. Thread21.5mm Incl. Thread
AMI G38 F95GAL 38A88038CW2.5mfd.92.0mm Incl. Thread33.0mm Incl. Thread
AMI G39 F95Daikin90037ACW2mfd.61.0mm Incl. Thread38.0mm Incl. Thread
AMI G40 F95LG 2.0T117069CW3mfd.67.0mm Incl. Thread23.0mm Incl. Thread
AMI G41 F95Hitachi, UC - 1167114068ACW3mfd.70.0mm Incl. Thread38.0mm Incl. Thread

* Subject to revision without notice. Contact our engineering team for the latest factory specifications.

Applications

Where the ODU Fan Motors — G Series (F95) Is Used

Versatile across industrial, construction and surface preparation sectors.

Split AC outdoor units

Window AC condensers

Replacement & OEM supply
